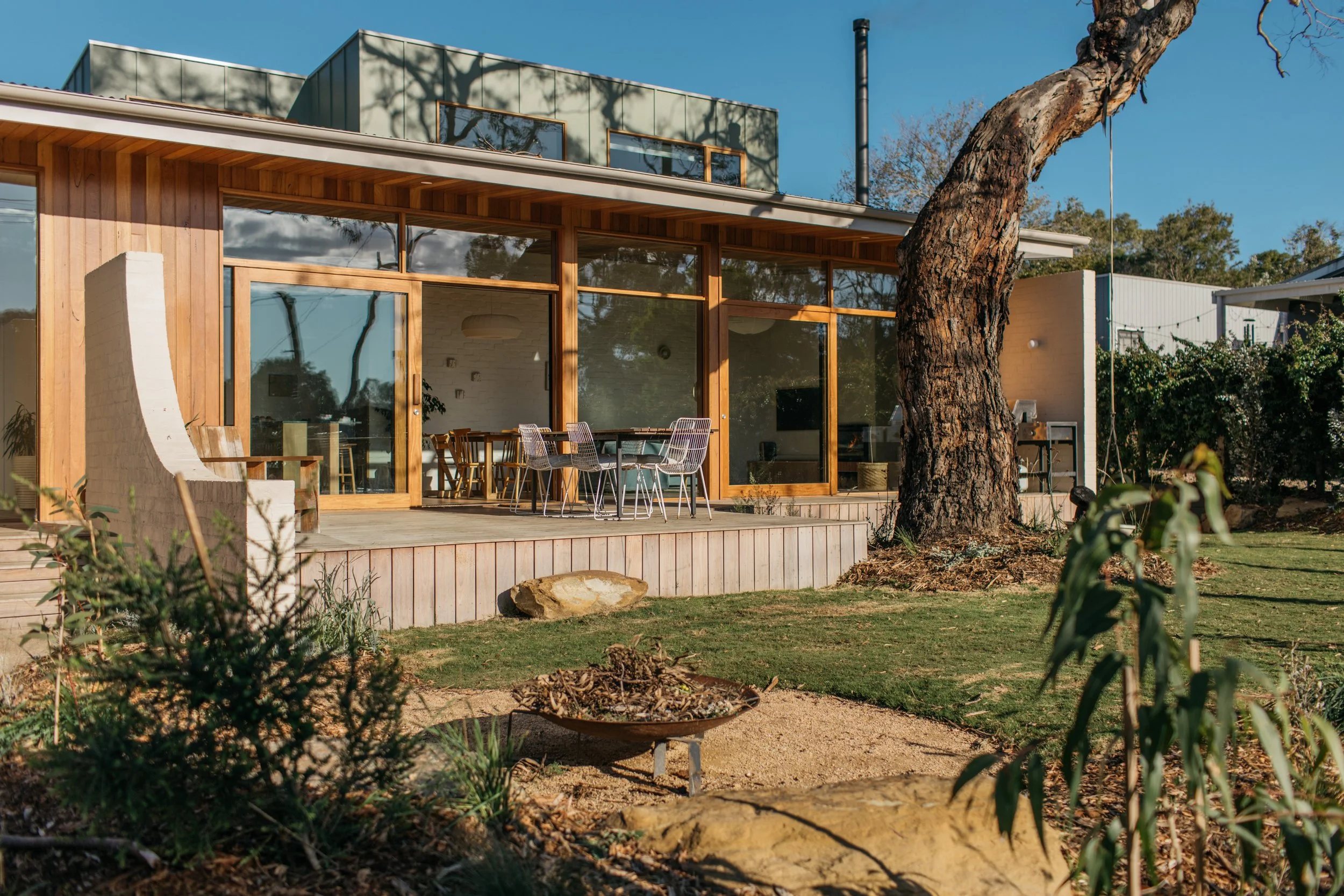

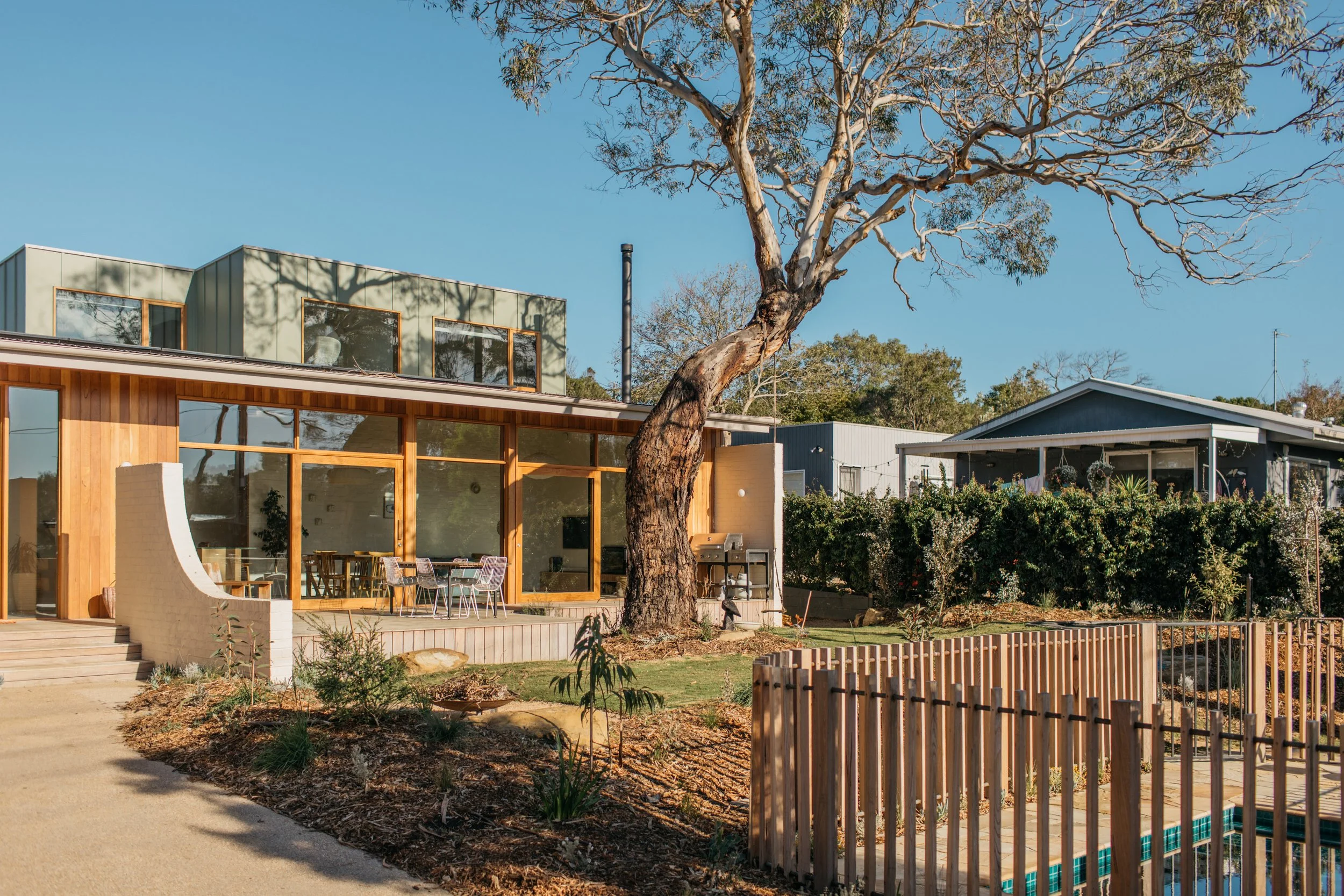

Manna High Performance House - Anglesea
Sustainability & Performance Specs
Project type: New Build
Performance: High Performance
Ceiling/roof R values: 240mm Timber rafters & counter rafter with Earthwool + 40mm wood fibre
R5.0 + R2.0 + R1.0 = R8.0
Floor: R5 Batts to 240mm floor joists. R3 XPS Decoupled slab
Wall assembly: 140mm Insulated timber stud frame, plus 40mm wood fibre insulation
R4.0+R1.0 = R5.0
Internal airtight vapour permeable membrane: ProClima vapour membrane

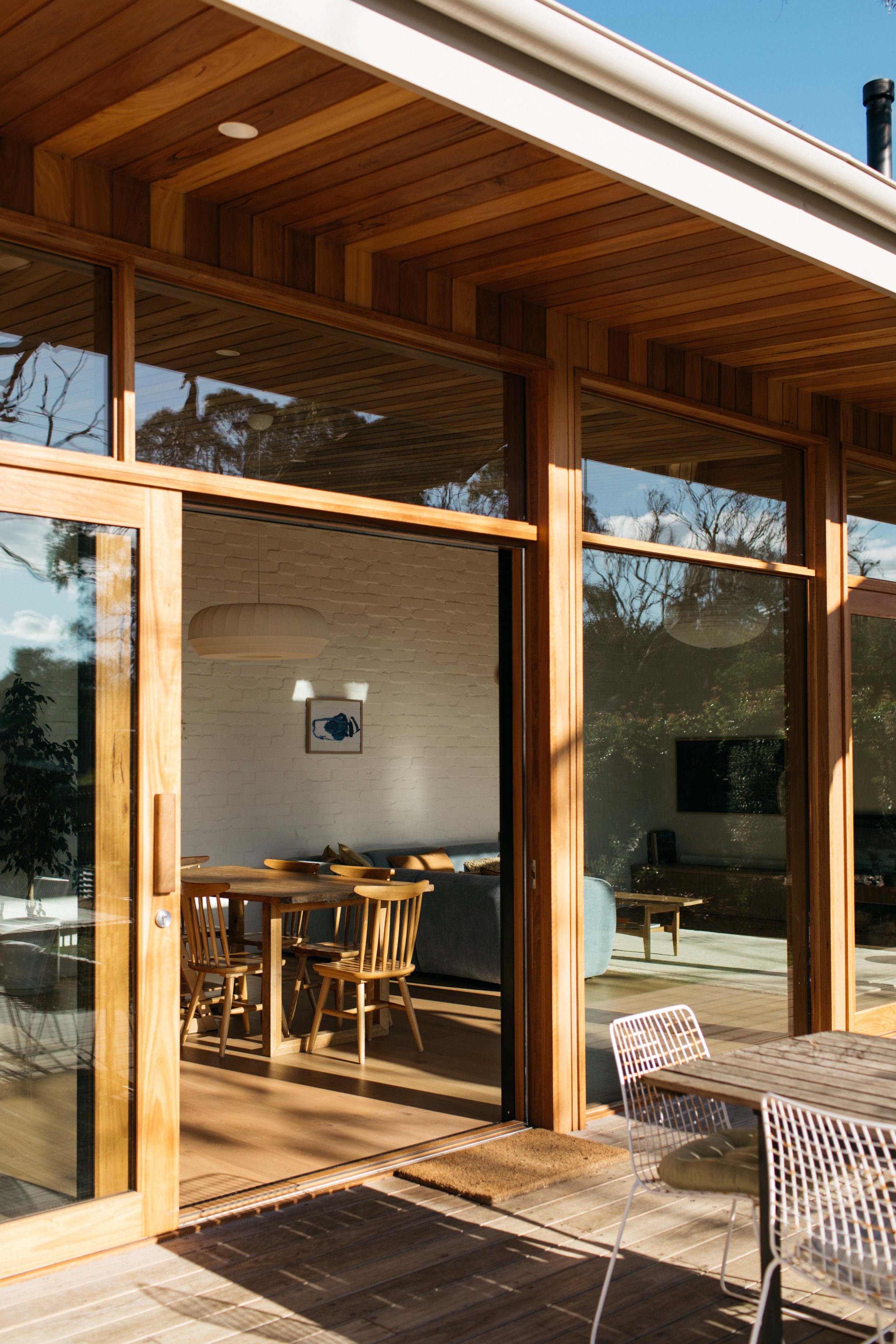

Windows & doors: Doors: Pickering double glazed.
MHRV: Zehnder Comfoair CA200, via FANTECH
NatHERS: 8.2 Stars
Heat pump hot water: Reclaim Heat pump hot water
Solar PV: 6.6kW solar
Tesla Power Wall
Water: 15,000 L rainwater tank
Size: 192m2 + garage
Bushfire resilience: Bushfire rating: BAL 29. Bushfire species timbers: Blackbutt Windows & doors: 6mm toughened glass Cladding: 9mm fibre cement cladding Stainless steel mesh to all gaps and cavities
Builder: owner builder
